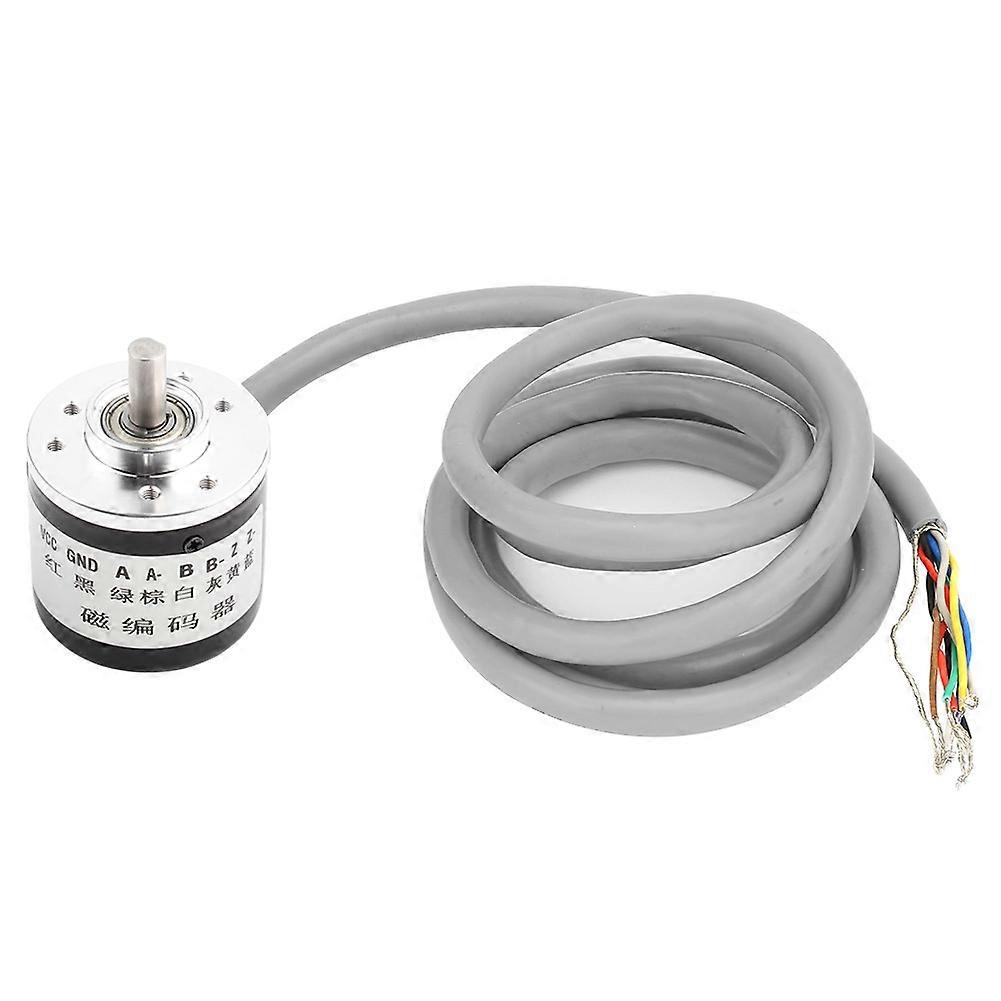

38mm Magnetic Encoder 1024 Pulses Incremental Rotary Encoder DC5V

Features: _x000D_ It has the advantages of small size, light weight, compact structure, easy installation, etc. _x000D_ Application: It is suitable for intelligent control of various displacement change measurement, automatic fixed length automatic suede machine, steel fixed length cutting controller, civil height measuring human body scale, college student competition robot, etc. _x000D_ Internal ASIC devices, high reliability, long life, strong anti-interference performance _x000D_ Stainless steel spindle with higher stability and protection ability, metal shell more solid impact resistance. _x000D_ Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output _x000D_ _x000D_ _x000D_ Specification: _x000D_ Model: HAJ1024 _x000D_ Readout mode: non - contact _x000D_ Output mode: voltage output, collector output, complementary output, push pull output, long line drive output, differential output, fork output _x000D_ Output phase: A, B _x000D_ External diameter: 38mm _x000D_ The diameter of axle: 6 mm _x000D_ Standard length of wiring wire: 1.2m _x000D_ Resolution (pulse/rotation) : 1024P/R _x000D_ Wiring method (8 wires) : _x000D_ Brown wire: dc5v (positive pole) _x000D_ Blue wire: 0V (negative pole) _x000D_ Black wire: A(phase) _x000D_ White wire: B(phase) _x000D_ Shielding network cable: N.C (ground) _x000D_ Output A difference: A, B phase difference of 90±45℃(1/4±1/8T) _x000D_ Output mode: NPN open collector output _x000D_ Output capacity: external voltage: under DC30V, synchronous current: under 35mA, residual voltage: under 0.4v (synchronous current: under 35mA) _x000D_ Output up and down time: 1 s or less _x000D_ Control the output voltage: 5 v load resistance 1 kΩ _x000D_ Starting torque: below 0.9mN.m _x000D_ Inertia moment: 1 x 10-6kg.m2 (below 600 pulses/rotation: 3 X 10-7kg.m2) _x000D_ _x000D_ _x000D_ Axial allowable force: _x000D_ Radial: 30 N _x000D_ The axial: 20 N _x000D_ Maximum number of rotations allowed: 6,000r/min _x000D_ Protection circuit: load short circuit protection, power supply reverse wiring protection _x000D_ Ambient temperature range: action: - 10 ~ + 70℃, save: - 25 ~ + 85℃(not frozen) _x000D_ Range of ambient humidity: 35 ~ 85%RH each during operation and preservation (no condensation) _x000D_ Insulation resistance: more than 20mΩ (DC500V Megohmmeter) of charge between the whole and the shell_x000D_ Voltage resistance: AC500V 50/60hz 1min between the whole charging part and the shell _x000D_ Vibration (durability) : 10 ~ 500Hz complex amplitude 2mm or 150m/s2 _x000D_ Impact (durability) : 1,000m/s2 3 times in X, Y and Z directions _x000D_ Material: Case lead alloy,Body aluminum _x000D_ Cable length:1.2m/3.9ft _x000D_ _x000D_ _x000D_ Package list: _x000D_ 1 x Encoder _x000D_ _x000D_ _x000D_ Note:_x000D_ Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
