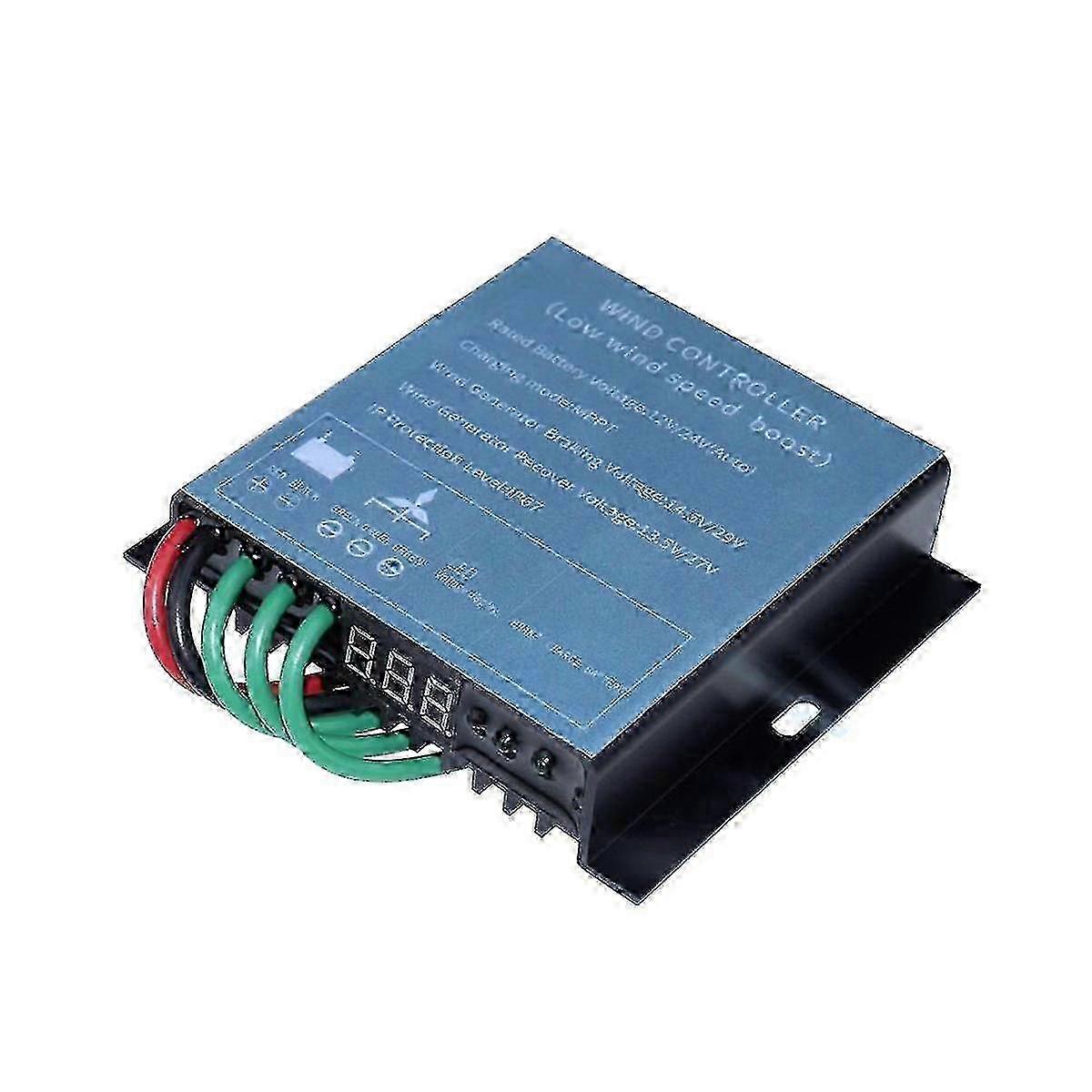

Wind Generator Controller 12/24V 800W MPPT Wind Charge Controller Wind Turbine Generator Controller 1. Automatically charge the battery. 2. The rectifier and brake circuit of this controller adopts an integrated module, which is more advanced than the traditional terms of heat dissipation and reliability. 3. Adopts a fully sealed and waterproof design, and its protection grade reaches above IP67. It can be used normally for a long time even in water. Notes: Confirm that the output voltage of the wind turbine generator is consistent with the rating voltage of the battery. Connect the wires in the following order, first connect the positive and negative poles of the battery, and then connect the three-phase voltage output of the fan. Please connect the battery and wind turbine to the controller in accordance with the instructions. Reverse polarity or wrong position will lead to abnormal operation of the system or even complete damage to the controller. Wiring mode: 1. Connect the positive and negative poles of the battery to the positive (red) and negative (black) terminals of the battery of the controller. 2. Respectively connect the three-phase output voltage of the wind turbine to the three-phase input (green line) terminal of the controller fan. Parameters: 1. Maximum input AC voltage: AC35V 2. Output voltage: 12V / 24V 3. Battery charging cut-off voltage: 14.5V 0.3V / 29V 0.3V 4. Maximum charging current: 15A (12V) maximum charging current: 10A (24V) 5. Wind generator speed limit voltage 14.5V 0.3V, 29V 0.3V 6. Protection level: IP67 7. Static power consumption: 0.008A 8. Bearing power: 800W 9. Maximum bearing wind speed: .12 10. Working temperature: -35 C - 65 C 11. Input wiring: three-wire system 12. Control mode: 12V/24V compatible 13. Installation : bolted 14. Do not reverse the positive and negativepoles to avoid burning the controller. Application:Wind Controller color:Blue Material:aluminum alloy Package Contents: 1 x MPPT Wind Generator Controller Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm. Note: Due to the light and screen setting difference, the item's color may be slightly different from the pictures. Please allow slight dimension difference due to different manual measurement.
