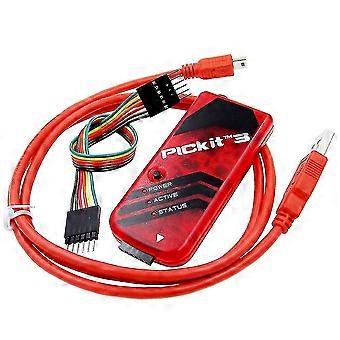

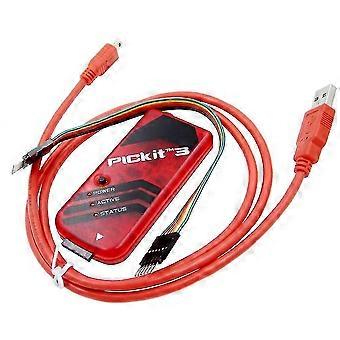

The MPLAB PICkit 3 allows debugging and programming of PIC and dsPIC Flash microcontrollers point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer's PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2- MPLAB ICD 3 and MPLAB REALICE). Support Pickit3.5 software.Features:The download speed USB connection stability than ICD2.The off-line programming functions. Development and debugging can be programmed to do product batch off-line programming.Power output the internal voltage can be directly in the MPLAB IDE software control.PIKCIT3 has begun to support WIN7 systemPatch design SMD reflow soldering processing- more stable and reliable product qualityFunction:USB (Full speed 12 Mbits/s interface to host PC)Real-time executionMPLAB IDE compatibleBuilt-in over-voltage/short circuit monitorFirmware upgradeable from PC/web downloadTotally enclosedSupports low voltage to 2.0V(2.0V - 6.0V)Diagnostic LEDs (power- busy- error)Read/write program and data memory of microcontrollerErase of program memory space with verificationFreeze-peripherals at breakpointICD2:Installing the microcontroller 28-pin 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position.The 8 14 18 20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B) shorting cap on the B position.The ICD2 KIT2 KIT3 crystalhead or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)The seat supports the following programming microcontroller:PIC16/18XX 40PIN Series devices (except 16F59)PIC16/18XX 28PIN Series devices (except 16F57)PIC16/18XX 18PIN Series devicesThe PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)includes: 1 Set x PICKIT3 Programmer + ICD2 with cable
