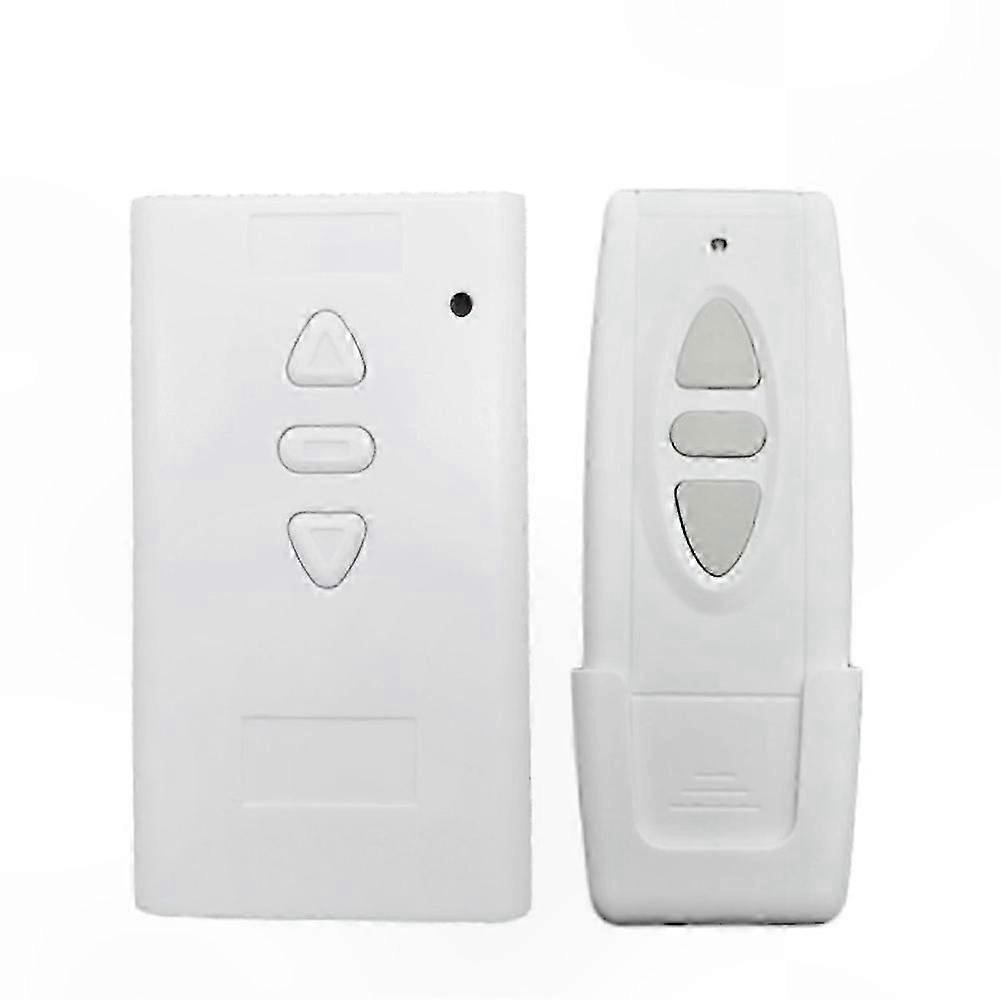

Working Voltage: AC/DC 12V-36V (supports both AC and DC; wide voltage range from 12V to 36V, including 12V, 24V, and 36V) Working Current: 48mA Quiescent Current: 16mA Max Load: 10A Relay (optimal performance under 5A or 60W) Function: Receiver with manual button control and wired external button (transmitter not included). Connect the normally open switch to the external button pin (U--S--D--GND) to control motor forward and reverse cycling. 1. Default state is OFF. If power is interrupted and restored, the device remains OFF until manually turned ON. 2. Output state: Momentary, Toggle, or Latched, selectable via jumper on receiver. Shipped default is Latched. To use Momentary mode, change the jumper setting. Avoid using Toggle mode. 3. For Momentary operation, set jumper to positions "1&2". 4. For Latched operation, set jumper to positions "3&4". 5. In Momentary mode: Press "Up" button for motor forward; release to stop. Press "Down" button for motor reverse; release to stop. In Latched mode: Press "Up" button for motor forward; press "Stop" to halt. Press "Down" button for motor reverse; press "Stop" to halt. 6. If limit switches are not used, UP, DOWN, and COM terminals are pre-connected before shipping. Disconnect only if using limit switches. 7. When receiver is in Latched output mode, a 0.5-second delay between forward and reverse is enabled as a protective function. Type: Wireless Remote Controller Color: White Material: ABS Package Contents: 1 x Wireless Remote Controller (12V 23A battery not included) 1 x Receiving Controller Note: Only the items listed above are included. Other accessories shown are not part of the package. Light reflection and display differences may cause slight variations in color between the image and actual product. Measurement error allowed within +/- 1-3 cm.
